ZOOKOTO 12V-32V DC 50A Circuit Breaker Fuse Inverter with Manual Reset Button for Auto Truck RV Marine Trailer Waterproof 50Amps
Product details
| Management number | 236855446 | Release Date | 2026/07/10 | List Price | US$6.40 | Model Number | 236855446 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

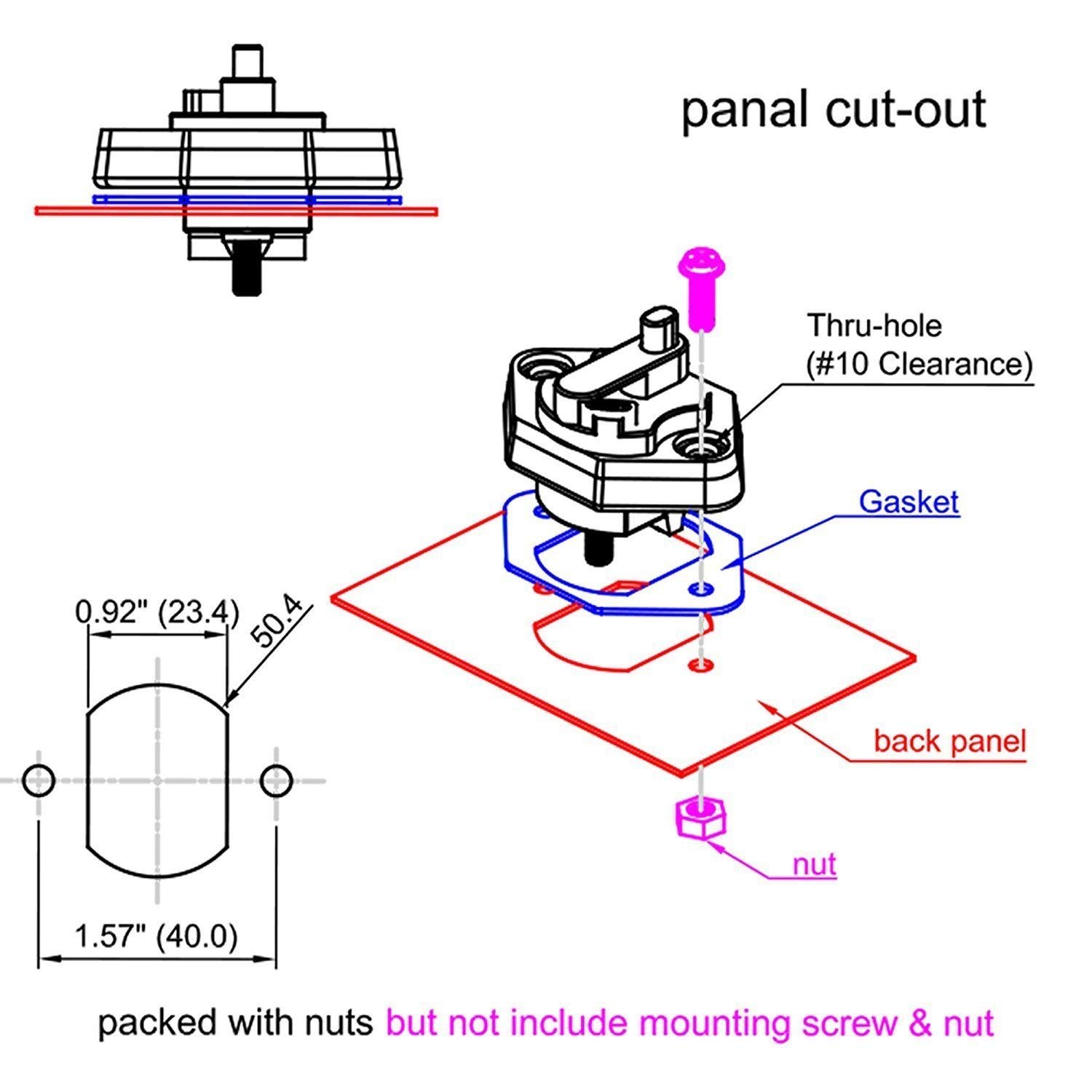

Features: Circuit breaker stops surges from damaging your amps. Unique red push button reset manually. Panel mount and protective stud insulators included. Easy to install, Manual Reset Circuit Breaker, Mount on panel or firewall. Water resistant housing. Splash and dust proof. Typically used in DC systems in marine applications (as a main or branch circuit breaker), truck, bus and RV systems, add-on protection for accessories. Specifications: Material: Metal and plastic Mounting: Panel Mount Main Color: Black Rated Current: 50A Voltage: 32V DC Waterproof Rate: IP67 Reset Type: Type III, Manual Reset Termination: #10-32 threaded studs SAE Standard: SAEJ553 SAEJ1171 Interrupt Capacity: 2500A @ 14Vdc Operating Temperature: -32°C to 82 °C(-25°F to 180 °F) Wire Connection: BAT LINE SHI for input wire, AUX LOAD for output wire Package included: 1 x 50 Amps Circuit Breaker 12V-32V
- Power Rating: Drop in replacement for 50A Mid-Range Thermal Circuit Breaker
- Terminal Size: #10-32 threaded studs, Dimension: 2.19"x1.46"x1.33" (inch)
- Reset Type: Type III Manual Reset (Switchable), Visible reset lever shows open condition
- Max Voltage: 32V DC, Interrupt Capacity: 2500A per ABYC E-11
- Sepcification: SAE J553; SAE J1171 (Ignition Protected); ABYC E-11; UL1500. Combines switching and circuit protection into a single device
| ASIN | B07FLRCY7L |
|---|---|
| Model | NBHX-SuoXing-50A-Small |
| Voltage | 12 Volts |
| Brand Name | ZOOKOTO |
| Unit Count | 1.0 Count |
| Item Weight | 40 Grams |
| Part Number | NBHX-SuoXing-50A-Small |
| Manufacturer | ZOOKOTO |
| Mounting Type | Panel Mount |
| Current Rating | 50 Amps |
| Number of Poles | 1 |
| Circuit Breaker Type | Standard |
| Smart Home Compatibility | Not Smart Home Compatible |
| Item Dimensions D x W x H | 1.33"D x 1.46"W x 2.19"H |
